Lenovo IdeaPad S10 Review

by Jerry Jackson Reads (592,436)

by Jerry Jackson

The ultra-portable laptop market has never been more active than it has in the last year. Since the introduction of the “netbook” category of small budget notebooks last year our office has been flooded with at least a dozen compact laptops priced well below $500. With so many manufacturers scrambling to create their own “netbooks” it was only a matter of time before Lenovo came to the table with their own value-priced IdeaPad S10.

The Lenovo IdeaPad S10 is a 10-inch netbook with a $439 starting price and some impressive features that help place it a step above the competition. Does the S10 have what it takes to stand out in a market that is becoming increasingly more crowded? Let’s take an in-depth look.

Our Lenovo S10 features the following specifications:

  • 1.6GHz N270 Intel Atom Processor
  • 1GB PC2-5300 DDR2 SDRAM 667MHz
  • Windows XP Home Edition (SP3)
  • 10.2″ WSVGA AntiGlare TFT with integrated camera 1024×600
  • 160GB 5400rpm hard drive
  • Intel GMA 950 Integrated Graphics
  • Broadcom 11b/g Wi-Fi wireless and Bluetooth
  • 4-in-1 Media card reader and ExpressCard slot
  • 3-Cell Li-ion battery
  • Size: 9.8″ x 7.2″ x 1.2″ (including feet)
  • Weight: 2.64 lbs (with 3-cell battery)
  • Starting price: $439 (with 512MB RAM and 80GB hard drive)

Build and Design

The design of the IdeaPad S10 is unsurprisingly similar to other netbooks we’ve seen in recent months, but Lenovo has managed to include a few pleasant surprises. The exterior is covered in white “pearl-like” plastics with a slight glossy finish. The interior keyboard and palmrest surfaces are covered with matte white plastics with reasonable durability and only a minor bit of flex around the palmrests when you press firmly on those surfaces.

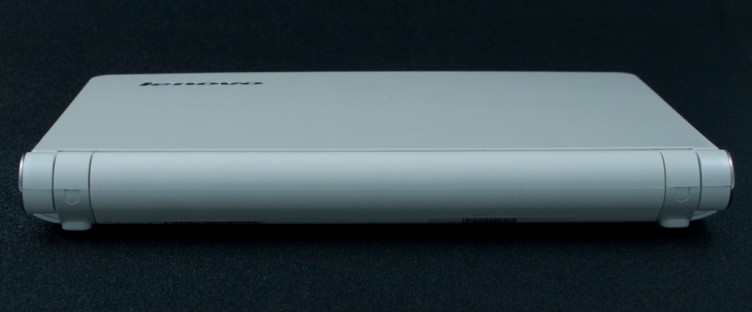

What first appears to be a giant beefy hinge for the 10-inch display is actually the 3-cell battery with a small hinge on either side of the tiny laptop. Overall, the look is quite nice, but the white plastics do give this netbook a slightly “toy like” appearance. When I took the S10 with me and was using it in public with my 2-year-old daughter nearby several other parents asked me if the S10 was a toy laptop for my daughter. That is unfortunate since, as we are about to mention, the S10 is a remarkably capable ultraportable laptop.

The build quality of the IdeaPad S10 is extremely solid for a subnotebook of this size and weight. The construction is mostly plastic but all of the plastics feel strong enough to handle being tossed around inside a bookbag.

In terms of upgradeability, the S10 is much easier to upgrade than many netbooks currently on the market. Some of the netbooks we’ve seen to date require complex disassembly in order for you to get to the storage drive, system RAM, or wireless cards. Even worse, some other netbooks have slots for upgrades but no connections on the motherboard so it is impossible to upgrade them. This is not the case with the S10.



Keyboard and Touchpad

Most low-priced, full-size notebooks currently on the market feature poorly built keyboards that show significant flex/bounce when typing pressure is applied. Thankfully, most netbooks have remarkably firm keyboards due to the fact that the chassis is so small there isn’t much empty space inside the notebook for the keyboard to flex or bounce.

The keyboard on the IdeaPad S10 is less cramped than what we’ve seen on most 7-inch and 8.9-inch netbooks, but the S10 keyboard is still extremely compact. Most touch typists will probably need some time to figure out proper finger placement on the keyboard in order to avoid making typos. Again, this is nothing new for netbooks, which usually require you to use a “hunt and peck” style of typing rather than traditional touch typing methods. Bottom line, this keyboard isn’t designed to be used as a primary/main computer. For users who are considering the S10 as their “main computer” in their home or office, a full-size external keyboard and external mouse are recommended.

The touchpad design, while smaller than a traditional laptop touchpad, is surprisingly nice for a budget netbook. The touchpad in our review unit was a Synaptics touchpad with excellent sensitivity, responsiveness, and smooth tracking. The touchpad buttons are located in the correct position and have nice, deep, well-cushioned presses with a satisfying “click” when pressed. A nice addition to the touchpad was support for Synaptics multi-touch gestures which allow you to do things such as zoom in or zoom out simply by “pinching” or “spreading” the touchpad with your fingertips.

Display

The matte 10.2″ WSVGA (1024×600) AntiGlare TFT display on the S10 is nice and vibrant with rich colors and good contrast. The white levels are very clear and the matte surface prevents glare and reflections which help make the screen easier to read outdoors under bright sunlight.

Horizontal viewing angles are good, so you and a friend won’t have trouble watching a movie on the 8.9-inch screen at the same time. Vertical viewing angles are acceptable, but colors do tend to become darker and slightly inverted when viewed from below.






Ports and Features

Port selection was pretty impressive on the S10 compared to other netbooks, with the standout features being an ExpressCard slot for additional expansion and built-in Bluetooth for using an external mouse and keyboard without needing to sacrifice one or more of the two USB ports.

In fact, if there isn’t much to complain about here other than the fact that the S10 has only two USB ports. However, if we had to choose between a third USB port or an ExpressCard slot and Bluetooth we will gladly sacrifice the third USB port. Here is a quick tour of what you get:

Front: No ports, just indicator lights and the speakers.

Rear: Battery

Left: Heat vent, power jack, VGA out, 3-in-1 card reader, and USB


Right: ExpressCard slot, headphone/mic, USB, Ethernet, security lock slot

Performance

This Intel Atom based netbook won’t be breaking any speed records, but it performed more than adequately for normal activities. Windows startup took less than 30 seconds and internet browsing, word processing, and even photo editing tasks were downright “snappy.” While the 3D graphics benchmark numbers aren’t particularly impressive, it’s important to keep in mind that netbooks are not designed for playing computer games. The S10 and similar netbooks are mobile internet portals and productivity tools for getting some quick work done without needing to carry a giant laptop.

PCMark05 measures overall system performance (higher scores mean better performance):

Notebook PCMark05 Score
Lenovo IdeaPad S10 (1.60GHz Intel Atom, Intel GMA 950) 1,446 PCMarks
Acer Aspire One (1.60GHz Intel Atom, Intel GMA 950)  1,555 PCMarks
ASUS Eee PC 901 (1.60GHz Intel Atom)  746 PCMarks
MSI Wind (1.60GHz Intel Atom)  N/A
ASUS Eee PC 900 (900MHz Intel Celeron M ULV) 1,172 PCMarks
HP 2133 Mini-Note (1.6GHz VIA C7-M ULV) 801 PCMarks
HTC Shift (800MHz Intel A110) 891 PCMarks
ASUS Eee PC 4G (630MHz Intel Celeron M ULV) 908 PCMarks
ASUS Eee PC 4G (900MHz Intel Celeron M ULV) 1,132 PCMarks
Everex CloudBook (1.2GHz VIA C7-M ULV) 612 PCMarks
Sony VAIO TZ (1.20GHz Intel Core 2 Duo U7600) 2,446 PCMarks
Fujitsu LifeBook P7230 (1.2GHz Intel Core Solo U1400) 1,152 PCMarks
Sony VAIO VGN-G11XN/B (1.33GHz Core Solo U1500) 1,554 PCMarks
Toshiba Portege R500 (1.2GHz Intel Core 2 Duo U7600) 1,839 PCMarks



wPrime processor comparison results (lower scores mean better performance):

Notebook / CPU wPrime 32M time
Lenovo IdeaPad S10 (Intel Atom @ 1.60GHz) 127.172 seconds
Acer Aspire One (Intel Atom @ 1.60GHz)  125.812 seconds
ASUS Eee PC 901 (Intel Atom @ 1.60GHz) 123.437 seconds
MSI Wind (Intel Atom @ 1.60GHz) 124.656 seconds
ASUS Eee PC 900 (Intel Celeron M ULV @ 900MHz) 203.734 seconds
HP 2133 Mini-Note (Via CV7-M ULV @ 1.6GHz) 168.697 seconds
ASUS Eee PC 4G (Intel Celeron M ULV @ 630MHz) 289.156 seconds
ASUS Eee PC 4G (Intel Celeron M ULV @ 900MHz) 200.968 seconds
Everex CloudBook (VIA C7-M ULV @ 1.2GHz) 248.705 seconds
Fujitsu U810 Tablet PC (Intel A110 @ 800MHz) 209.980 seconds
Sony VAIO VGN-G11XN/B (Core Solo U1500 @ 1.33GHz) 124.581 seconds
Sony VAIO TZ (Core 2 Duo U7600 @ 1.2GHz) 76.240 seconds
Dell Inspiron 2650 (Pentium 4 Mobile @ 1.6GHz) 231.714 seconds



3DMark06 comparison results:

Notebook 3DMark06 Score
Lenovo IdeaPad S10 (1.60GHz Intel Atom, Intel GMA 950) N/A
Acer Aspire One (1.60GHz Intel Atom, Intel GMA 950) 122 3DMarks
Sony VAIO TZ (1.20GHz Core 2 Duo U7600, Intel GMA 950) 122 3DMarks
HP dv2500t (2.0GHz Intel Core 2 Duo T7300, NVIDIA GeForce Go 8400M GS 128MB) 1,055 3DMarks
Sony VAIO FZ (2.0GHz Intel Core 2 Duo T7300, Intel X3100) 532 3DMarks
HP dv6000t (2.16 GHz Intel T7400, NVIDA GeForce Go 7400) 827 3DMarks



3DMark03 Graphics Performance Benchmark (higher scores indicate better performance):

Notebook 3DMark03 Results
Lenovo IdeaPad S10 (1.60GHz Intel Atom, Intel GMA 950) 569 3DMarks
Acer Aspire One (1.60GHz Intel Atom, Intel GMA 950) 751 3DMarks
MSI Wind (1.6GHz Intel Atom, Intel GMA 950) 589 3DMarks
Lenovo ThinkPad T60 (2.16GHz Intel Core 2 Duo T4400, ATI X1400 128MB) 4,622 3DMarks



HDTune for built-in Hard drive:



Speakers and Audio

The speakers on the IdeaPad S10 are reasonably impressive for a budget netbook. While the two tiny stereo speakers located on the front edge of the netbook produce good volume levels with minimal distortion and acceptable range, it’s worth mentioning the somewhat odd placement.

Since the speakers are located on the front edge of the notebook the sound isn’t being directed up and toward the user when the S10 is used as a laptop. In fact, our staff usually refers to laptop speakers with this type of placement as “crotch speakers” because the speakers are directing sound to your waist rather than your ears. Given the compact design of the S10 there weren’t many other places for the speakers to go, but we’d like to see a different speaker location on next year’s model.

The headphone jack on the S10 works well with the three different brands of earphones I used during the test. No static or other noise was noticed through the jack besides imperfections in the audio source itself.

Heat and Noise

As we continue to see in our labs, nearly all of the Intel Atom-based netbooks produce a reasonable amount of heat while running. The IdeaPad S10 remained on par with the competition in this regard. Even under normal conditions such as surfing the web, typing documents, or downloading email attachments, exterior temperatures peaked above 100 degrees Fahrenheit after more than 25 minutes of use. Granted, this level of heat isn’t horrible by any means, but it might be a little uncomfortable on your lap after an hour.

The hottest spot on this netbook was the area around the hard drive and RAM. The external temperature readings below (listed in degrees Fahrenheit) were recorded while browsing the Web and running two HDTune tests in a row after approximately 30 minutes of use:





In terms of noise, our review unit of the S10 remained quiet during most of the testing period … except during graphics benchmarks. When the relatively weak integrated graphics were stressed during our review the internal cooling fan kicked into high gear. The fan noise wasn’t horrible by any means, but it would be loud enough to get a teacher’s attention in a quiet classroom. Again, this only happened when stressing the S10′s graphics, so it shouldn’t be an issue for casual web browsing.

Battery

Under normal use, backlight at 100 percent and using wireless for web browsing and watching several streaming videos at 75 percent volume, the S10 managed to deliver three hours and 43 minutes of battery life. This is similar to what we’ve seen from Atom-based netbooks with 3-cell batteries, so there isn’t much to complain about here. However, as we’ve said in the past when reviewing other netbooks, these tiny laptops would make excellent mobile companions if they just had an option for a 6-cell or 8-cell battery for all-day use. In any case, lowering the screen brightness and turning off the wireless card should provide enough battery life for prolonged use with the 3-cell battery.


Conclusion

Is the Lenovo IdeaPad S10 the best netbook currently on the market and the best value for your dollar? Well, the answer isn’t simple, particularly considering the way that new netbooks seem to arrive every week. The S10 does several things right that we wish more manufacturers did with their netbooks.

First, Lenovo was smart enough to realize and ExpressCard slot is important if you want to make a netbook useful. The ExpressCard slot gives you the option of adding more USB ports, Firewire, eSATA, or any number of other ports to the S10. More importantly, the ExpressCard slot makes it easy to add a broadband modem to the S10 so that you can stay connected to the internet anywhere with cell phone reception.

Second, the S10 has built-in Bluetooth. Frankly, we’re amazed that every netbook doesn’t come with built-in Bluetooth since it allows you to connect devices to the netbook without using one of the USB ports.

Last, but certainly not least the S10 combines the surprisingly capable Intel Atom processor with a standard hard drive. While budget SSDs are nice, most consumers can’t get over the limited storage capacity of SSDs and that is why hard drives still have a place in netbooks.

On the other hand, the S10 still suffers from some of the same limitations as other netbooks: relatively high temperatures, small battery, and a cramped screen and keyboard.

Ultimately, the Lenovo IdeaPad S10 is a great ultra-portable laptop priced below $500. However, if you’re willing to put up with a bulkier notebook then it’s still possible to find a computer with more features and performance for almost the same price on sale.

Pros

  • Small and light
  • Easy to use
  • Very well built and durable
  • Easy to upgrade RAM, and hard drive
  • Comes with Bluetooth
  • ExpressCard slot offers extra expansion options

Cons

  • Gets a little hot
  • White plastics give this serious computer a “toy-like” appearance
  • Only two USB ports
  • 3-cell battery is nice, 6-cell battery would be better
